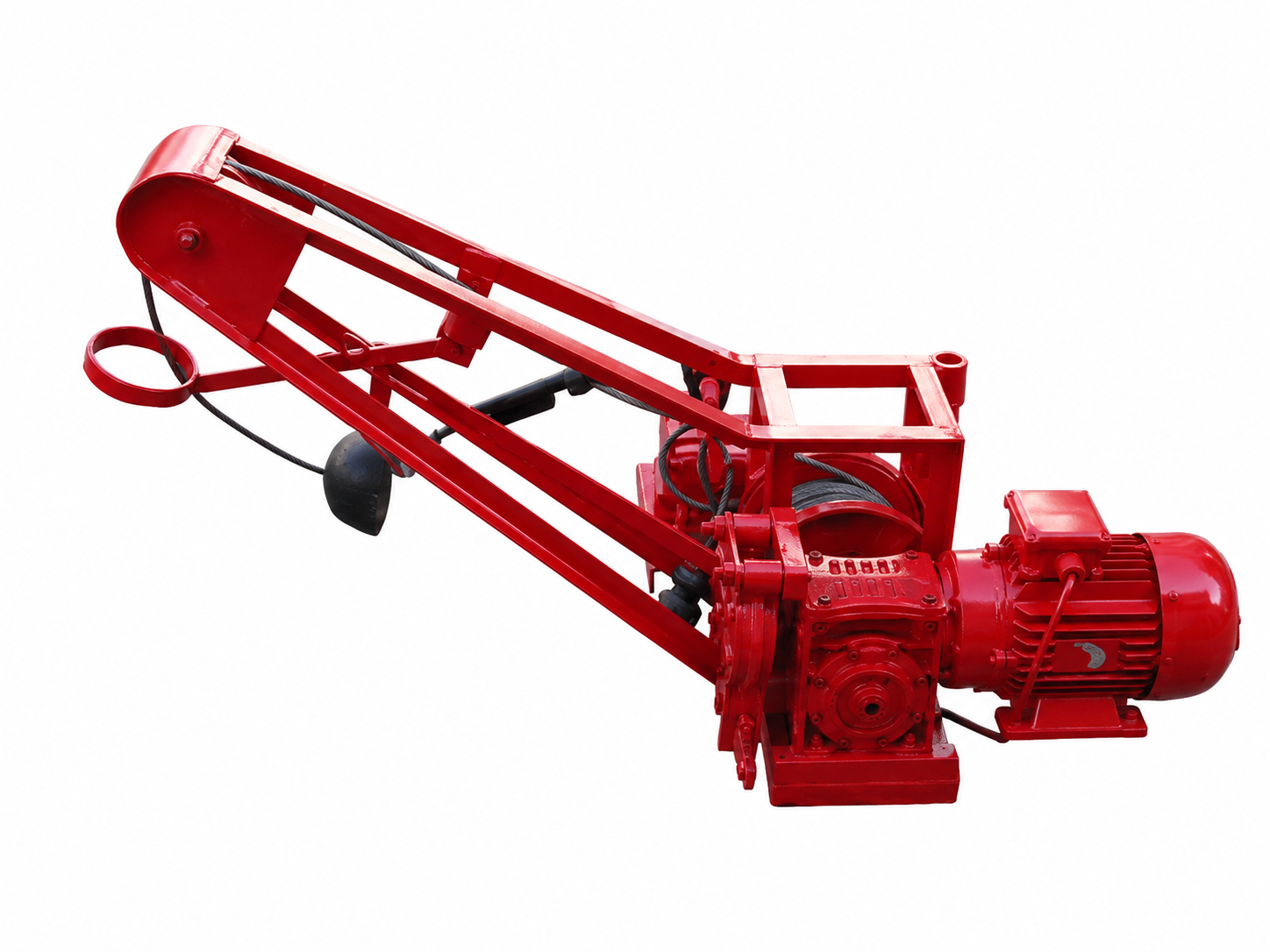

Roof type construction crane is installed on the upper floors of the buildings to be worked on, and the mortar, concrete, brick, iron, etc. prepared on the ground. These are machines with electric motors and lubricated and/or closed type transmissions that enable materials such as materials to be transported to upper and lower floors. It is preferred because of its ease of use, quiet operation, prevention of work loss and saving time due to reducing the number of workers. The electric motor operates at voltages between Single Phase (220 V) and Three Phase (380 V) and its lifting capacities are between minimum 150 and maximum 500 kilos.
PRODUCT CODE | |
LIFTING CAPACITY | |
MOTOR POWER | 4 HP |
STEEL ROPE LENGTH | 25 meters |
STEEL ROPE DIAMETER | |
LIFTING SPEED | 36 m/min |

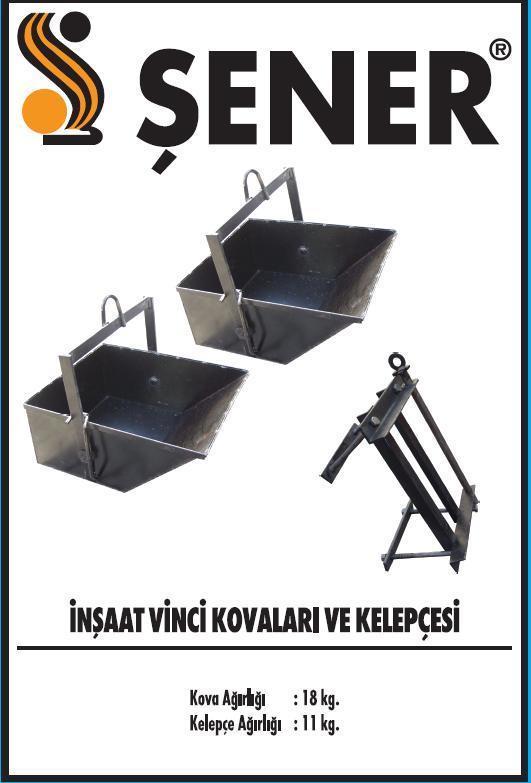

BUCKET QTY | 2 Pieces |
WEIGHT (WITHOUT BUCKET) | |
ELECTRICAL VALUES | 3kw. 1400 rpm 380 Volts. 1~ N PE 50Hz.- 60 Hz. |
